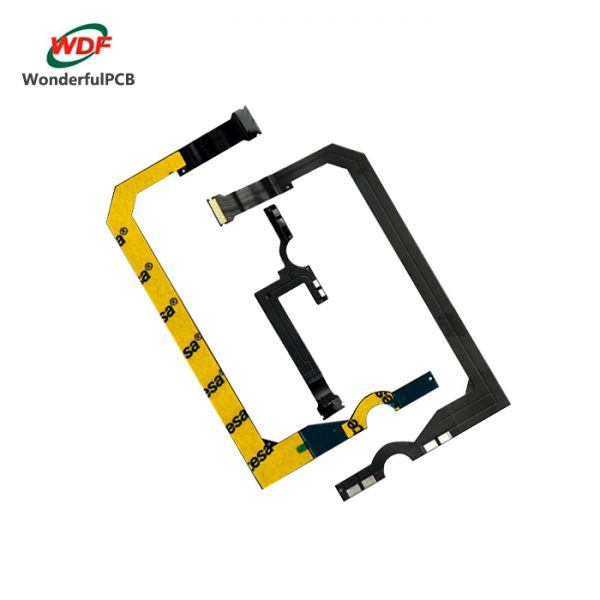

FPC-6
  • Brand Name: Customized
  • Min.Order Quantity: No
  • Supply Ability: 30~50 thousand ㎡/Month
  • Port: Shenzhen
  • Service: EMS/OEM/ODM
  • Payment Terms: T/T,Paypal,WU etc.
  • Layer: 2
  • Base Material: Polyimide
  • Copper Thickness: 1oz
  • Board Thickness: 0.15mm
  • Solder Mask Color: White
  • Silkscreen Color: Yellow cover film
  • Surface Finishing: Immersion Gold
  • Test Way: 100% E-Test
  • Standard: IPC-Class2/Class 3

PRODUCT DETAIL

Rigid-flex circuits are a hybrid construction flex circuit consisting of rigid and flexible substrates which are laminated together into a single structure.
The layers of a rigid flex are also normally electrically interconnected by means of plated through holes. Rigid-flex boards are normally multilayer structures.
We have industry-leading equipment and engineering teams to complete your time-sensitive requirements of PCB fabrication. Short-turn needs or constant high-volume supplying, we would provide service to meet your standards. Printed circuit board is a self-contained module of interconnected electronic components found in devices ranging from common beepers, or pagers, and radios to sophisticated radar and computer systems. It has a great deal of advantages, compared to older ways of building electronics.

It may have circuits that perform a single function, such as a signal amplifier, or multiple functions. We offer outstanding product services with qualities and we have been well-known in the PCB markets throughout worldwide. We have the best and the most modern facilities manufacturing all our products as, way better than other providers. Therefore, we will be the very only printed circuit board manufacturing partner to satisfy your needs.

Our PCB fabrication is available in various materials such as aluminum, copper, metal core, polyester etc. Also, we offer custom service to meet your particular requirement. For further information and details about our product, please take a look of our showroom, or send your inquiry to us.

Our Production Capability for PCB

Number of Layer 1 – 20 Layer
Maximum Processing Area 680 × 1000MM
Min Board Thickness 2 Layer – 0.3MM ( 12 mil )
4 Layer – 0.4MM ( 16 mil )
6 Layer – 0.8MM ( 32 mil )
8 Layer – 1.0MM ( 40 mil)
10 Layer – 1.1MM ( 44 mil )
12 Layer – 1.3MM ( 52 mil )
14 Layer – 1.5MM ( 59 mil )
16 Layer – 1.6MM ( 63 mil )
18 Layer – 1.8MM ( 71 mil )
Finished Board Thickness Tolerance Thickness ≤ 1.0MM, Tolerance: ± 0.1MM
1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10%
Twisting and Bending ≤ 0.75%, Min: 0.5%
Range of TG 130 – 215 ℃
Impedance Tolerance ± 10%, Min: ± 5%
Hi-Pot Test Max: 4000V/10MA/60S
Surface Treatment HASL, With Lead, HASL Free Lead
Flash Gold, Immersion Gold
Immersion Silver, Immersion Tin
Gold Finger, OSP
