PCBA-2
  • Brand Name: Customized
  • Min.Order Quantity: No
  • Supply Ability: 30~50 thousand ㎡/Month
  • Port: Shenzhen
  • Service: EMS/OEM/ODM
  • Payment Terms: T/T,Paypal,WU etc.
  • Layer: 8
  • Base Material: FR4
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Solder Mask Color: Blue(can customized)
  • Silkscreen Color: White(can customized)
  • Surface Finishing: Immersion Gold
  • Application Industry: Consumer Electronics
  • Application Products: Solid state drives
  • Outer Line width/space: 4/4mil
  • Inner Line width/space: 3.5/3.5mil
  • Min.Hole Size: 0.25mm
  • Test Way: 100% E-Test
  • Standard: IPC-Class2/Class 3

PRODUCT DETAIL

PCB Assembly  Sample Introduction

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS, FCC,ISO9008,SGS,UL
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: inner: vacuum-packed bubble bag outer: carton box
Delivery Time: 5-10 days
Payment Terms: T/T,Western union
Supply Ability: 1, 000, 000 PCS / week

Detailed Product Description

Material: FR4 Layer: 2
Color: Green Min Line Space: 5mil
Min Line Width: 5mil Copper Thickness: 1OZ
Board Size: 200*50mm Panel: 1
Surface: HASL-LF

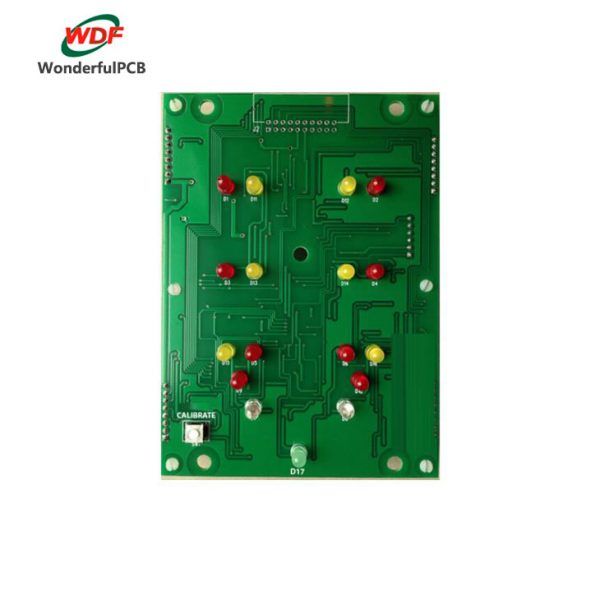

FR4 High TG pcb board assembly OEM Electronic Prototype Pcb Fabrication

FR4 Material High TG Assembly Board OEM Pcb Assembly Board  Electronic Prototype Pcb Fabrication

Quick detail:

Origin:China Special: PCB Assembly
Layer:2 Thickness:1.6mm
Surface: HASL-LF Hole:0.8

Specification:

We also have ability for PCB layout ,PCBA and Circuit assembly, specializes in producing the various electronic products based on your customized designs and do pcba,pcb assembly for all kinds of small ,medium Volume electronic products

Enabling you to focus on product development and sales, we can solve your production technology issues and take care of product quality

The operation we can handle for you is from the Bare pc board fabrication, full component procurement, SMT/BGA/DIP assembly, mechanical/case assembly, rubber molding, functional testing, repair, inspection of finished goods to shipment arrangement

Typical Applications

SMD package, Chip-on-board and Flip Chip assembly technique

0201 chip, Micro BGA, u-BGA, QFN and LGA assembly

AI and Thru-hole assembly

RoHS, REACH compliance and Lead-Free solder technology

Chip Programming

Conformal Coating

ICT test and AOI inspection

ESD Protection Control Procedure

IPC-A-610E Class II and Class III Workmanship Standard

1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Assembly With UL,CE,FCC,Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Assembly Line

7) High density interconnected board placement technology capacity.

Parameter:

o Item Data
1 Layer: 1 to 24 layers
2 Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
3 Board thickness: 0.20mm to 3.4mm
4 Copper thickness: 0.5 OZ to 4 OZ
5 Copper thickness in hole: >25.0 um (>1mil)
6 Max. Board Size: (580mm×1200mm)
7 Min. Drilled Hole Size: 4mil(0.1mm)
8 Min. Line Width: 3mil (0.075mm)
9 Min. Line Spacing: 3mil (0.075mm)
10 Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
11 Solder Mask Color: Green/Yellow/Black/White/Red/Blue
12 Shape tolerance: ±0.13
13 Hole tolerance: PTH: ±0.076 NPTH: ±0.05
14 Package: Inner packing: Vacuum packing / Plastic bag,Outer packing: Standard carton packing
15 Certificate: UL,SGS,ISO 9001:2008
16 Special requirements: Buried and blind vias+controlled impedance +BGA
17 Profiling: Punching, Routing, V-CUT, Beveling

Welcome to get the customized pcb assembly sample introduction with our professional manufacturers and suppliers. Through strict manufacturing process, we can assure you of the high quality and high efficiency of our pcb assembly sample introduction. Please be free to contact our factory.
